Mechanical CAD Design and technical Drawings
3D modelling, mechanical assemblies and manufacturing drawings for engineering and manufacturing projects
Services
Practical CAD support for engineering and manufacturing projects, from individual components to complete assemblies and production drawings.
3D CAD Modelling
3D models created from sketches, existing drawings or design requirements.
Technical Drawings
Multi-component mechanical assemblies with associated parts, drawings and documentation.
CAD Conversions and Revisions
Existing designs recreated, updated or converted into usable modern CAD formats.
Mechanical Assemblies
Clear, detailed manufacturing drawings with dimensions, tolerances and manufacturing information.
Selected Projects

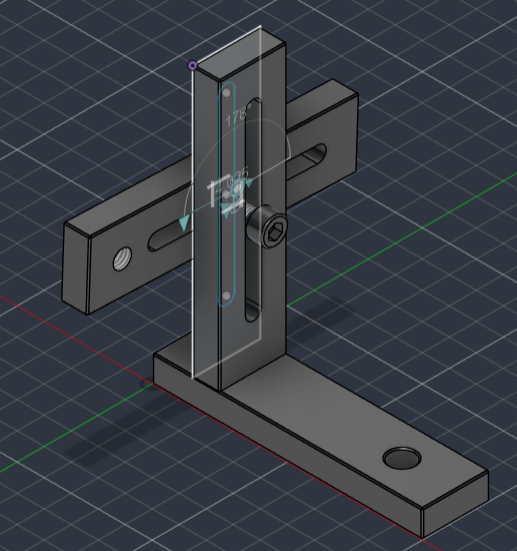

Sliding Stop Assembly
Mechanical Assembly & Technical Drawings

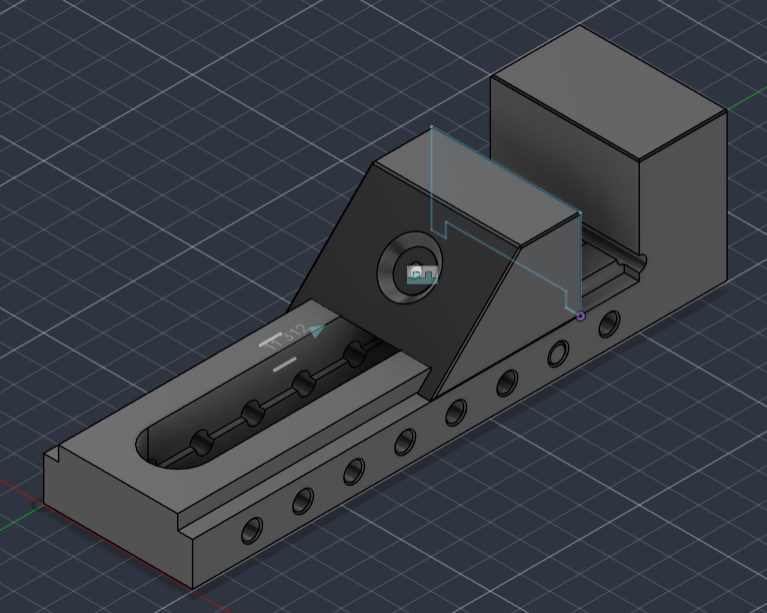

Vice Assembly
Component Design & Assembly
V-Block Fixture
Tooling & Fixture Design
Why Farnon CAD Design?
CAD designed with manufacturing in mind
Farnon CAD Design combines practical engineering and machining experience with mechanical CAD design.
Practical Engineering Experience
Hands-on experience with machining, tooling and mechanical components.
Manufacturing-Focused Design
Models and drawings developed with practical manufacture and assembly in mind.
Clear & Straightforward Service
Direct communication, clearly defined project requirements and agreed deliverables.
01
Enquiry
Tell me about your Project.
Send drawings, Sketches, CAD files or requirements
How It Works
02
Quote
Scope & Quotation
Clear scope, price & turnaround guarantee
03
CAD & Review
Design & Development
CAD work complete, reviewed and revised where required
04
Delivery
Final Files Supplied
Final files delivered in the agreed format.
Have a project in mind?
Whether you need a new 3D model, manufacturing drawing, assembly or an existing design updated, get in touch to discuss your requirements.
Not exactly sure what you need? Get in touch and we can discuss the project.
